我公司参照SKF-HMV标准生产的用于轴承安装、拆卸的液压螺母SKF-TTLM液压螺母的使用及轴承的安装、拆卸方法如下：
一、SKF-TTLM液压螺母的使用
·可产生强大的力，将轴承平缓的装入或拆下
·适用于各种螺纹标准的锥套、轴上轴承的安装和拆卸
·用高压手动泵向液压螺母注入液压油，活塞产生强大的推力，使轴承的安装和拆卸变得毫不费力并且准确和安全
二、SKF-TTLM液压螺母的使用方法
（一）轴承的安装(共分3种形式)
（二）轴承的拆卸

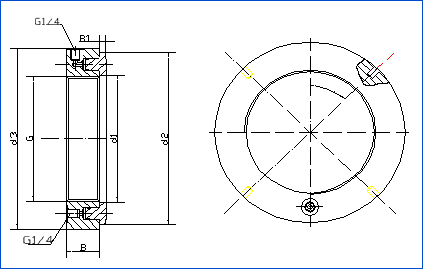

SKF-TTLM液压螺母的规格为：
M50×1.5—M200×3 ， Tr205×4—Tr500×5，详见下表。
|
型?????? 号
|
外? 型? 尺? 寸
|
活塞面积
|
重? 量
|
|
G
|
d1
|
d2
|
d3
|
B
|
B1
|
|
螺?? 纹
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm2
|
kg
|
|
SKF-TTLM10E
|
M50x1.5
|
50.5
|
104
|
114
|
38
|
4
|
2900
|
2.70
|
|
SKF-TTLM11E
|
M55x2
|
55.5
|
109
|
120
|
38
|
4
|
3150
|
2.75
|
|
SKF-TTLM12E
|
M60x2
|
60.5
|
115
|
125
|
38
|
5
|
3300
|
2.80
|
|
SKF-TTLM13E
|
M65x2
|
65.5
|
121
|
130
|
38
|
5
|
3600
|
3.00
|
|
SKF-TTLM14E
|
M70x2
|
70.5
|
127
|
135
|
38
|
5
|
3800
|
3.20
|
|
SKF-TTLM15E
|
M75x2
|
75.5
|
132
|
140
|
38
|
5
|
4000
|
3.40
|
|
SKF-TTLM16E
|
M80x2
|
80.5
|
137
|
146
|
38
|
5
|
4200
|
3.70
|
|
SKF-TTLM17E
|
M85x2
|
85.5
|
142
|
150
|
38
|
5
|
4400
|
3.75
|
|
SKF-TTLM18E
|
M90x2
|
90.5
|
147
|
156
|
38
|
5
|
4700
|
4.00
|
|
SKF-TTLM19E
|
M95x2
|
95.5
|
153
|
162
|
38
|
5
|
4900
|
4.30
|
|
SKF-TTLM20E
|
M100x2
|
100.5
|
158
|
166
|
38
|
6
|
5100
|
4.40
|
|
SKF-TTLM21E
|
M105x2
|
105.5
|
163
|
172
|
38
|
6
|
5300
|
4.65
|
|
SKF-TTLM22E
|
M110x2
|
110.5
|
169
|
178
|
38
|
6
|
5600
|
4.95
|
|
SKF-TTLM23E
|
M115x2
|
115.5
|
174
|
182
|
38
|
6
|
5800
|
5.00
|
|
SKF-TTLM24E
|
M120x2
|
120.5
|
179
|
188
|
38
|
6
|
6000
|
5.25
|
|
SKF-TTLM25E
|
M125x2
|
125.5
|
184
|
192
|
38
|
6
|
6200
|
5.35
|
|
SKF-TTLM26E
|
M130x2
|
130.5
|
190
|
198
|
38
|
6
|
6400
|
5.65
|
|
SKF-TTLM27E
|
M135x2
|
135.5
|
195
|
204
|
38
|
6
|
6600
|
5.90
|
|
SKF-TTLM28E
|
M140x2
|
140.5
|
200
|
208
|
38
|
7
|
6800
|
6.00
|
|
SKF-TTLM29E
|
M145x2
|
145.5
|
206
|
214
|
39
|
7
|
7300
|
6.50
|
|
SKF-TTLM30E
|
M150x2
|
150.5
|
211
|
220
|
39
|
7
|
7500
|
6.60
|
|
SKF-TTLM31E
|
M155x3
|
155.5
|
218
|
226
|
39
|
7
|
8100
|
6.95
|
|
SKF-TTLM32E
|
M160x3
|
160.5
|
224
|
232
|
40
|
7
|
8600
|
7.60
|
|
SKF-TTLM33E
|
M165x3
|
165.5
|
229
|
238
|
40
|
7
|
8900
|
7.90
|
|
SKF-TTLM34E
|
M170x3
|
170.5
|
235
|
244
|
41
|
7
|
9400
|
8.40
|
|
SKF-TTLM36E
|
M180x3
|
180.5
|
247
|
256
|
41
|
7
|
10300
|
9.15
|
|
SKF-TTLM38E
|
M190x3
|
191
|
259
|
270
|
42
|
8
|
11500
|
10.5
|
|
SKF-TTLM40E
|
M200x3
|
201
|
271
|
282
|
43
|
8
|
12500
|
11.5
|
|
SKF-TTLM41E
|
Tr205x4
|
207
|
276
|
288
|
43
|
8
|
12800
|
12.0
|
|
SKF-TTLM42E
|
Tr210x4
|
212
|
282
|
294
|
44
|
8
|
13400
|
12.5
|
|
SKF-TTLM43E
|
Tr215x4
|
217
|
287
|
300
|
44
|
8
|
13700
|
13.0
|
|
SKF-TTLM44E
|
Tr220x4
|
222
|
293
|
306
|
44
|
8
|
14400
|
13.5
|
|
SKF-TTLM45E
|
Tr225x4
|
227
|
300
|
312
|
45
|
8
|
15200
|
14.5
|
|
SKF-TTLM46E
|
Tr230x4
|
232
|
305
|
318
|
45
|
8
|
15500
|
14.5
|
|
SKF-TTLM47E
|
Tr235x4
|
237
|
311
|
326
|
46
|
8
|
16200
|
16.0
|
|
SKF-TTLM48E
|
Tr240x4
|
242
|
316
|
330
|
46
|
9
|
16500
|
16.0
|
|
SKF-TTLM50E
|
Tr250x4
|
252
|
329
|
342
|
46
|
9
|
17600
|
17.5
|
|
SKF-TTLM52E
|
Tr260x4
|
262
|
341
|
356
|
47
|
9
|
18800
|
19.0
|
|
SKF-TTLM54E
|
Tr270x4
|
272
|
352
|
368
|
48
|
9
|
19800
|
20.5
|
|
SKF-TTLM56E
|
Tr280x4
|
282
|
363
|
380
|
49
|
9
|
21100
|
22.0
|
|
SKF-TTLM58E
|
Tr290x4
|
292
|
375
|
390
|
49
|
9
|
22400
|
22.5
|
|
SKF-TTLM60E
|
Tr300x4
|
302
|
386
|
404
|
51
|
10
|
23600
|
25.5
|
|
SKF-TTLM62E
|
Tr310x5
|
312
|
397
|
416
|
52
|
10
|
24900
|
27.0
|
|
SKF-TTLM64E
|
Tr320x5
|
322
|
409
|
428
|
53
|
10
|
26300
|
29.5
|
|
SKF-TTLM66E
|
Tr330x5
|
332
|
419
|
438
|
53
|
10
|
27000
|
30.0
|
|
SKF-TTLM68E
|
Tr340x5
|
342
|
430
|
450
|
54
|
10
|
28400
|
31.5
|
|
SKF-TTLM69E
|
Tr345x5
|
347
|
436
|
456
|
54
|
10
|
29400
|
32.5
|
|
SKF-TTLM70E
|
Tr350x5
|
352
|
442
|
464
|
56
|
10
|
29900
|
35.0
|
|
SKF-TTLM72E
|
Tr360x5
|
362
|
455
|
472
|
56
|
10
|
31300
|
35.5
|
|
SKF-TTLM73E
|
Tr365x5
|
367
|
460
|
482
|
57
|
11
|
31700
|
38.5
|
|
SKF-TTLM74E
|
Tr370x5
|
372
|
466
|
486
|
57
|
11
|
32800
|
39.0
|
|
SKF-TTLM76E
|
Tr380x5
|
382
|
476
|
498
|
58
|
11
|
33500
|
40.5
|
|
SKF-TTLM77E
|
Tr385x5
|
387
|
483
|
504
|
58
|
11
|
34700
|
41.0
|
|
SKF-TTLM80E
|
Tr400x5
|
402
|
499
|
522
|
60
|
11
|
36700
|
45.5
|
|
SKF-TTLM82E
|
Tr410x5
|
412
|
510
|
534
|
61
|
11
|
38300
|
48.0
|
|
SKF-TTLM84E
|
Tr420x5
|
422
|
522
|
546
|
61
|
11
|
40000
|
50.0
|
|
SKF-TTLM86E
|
Tr430x5
|
432
|
532
|
556
|
62
|
11
|
40800
|
52.5
|
|
SKF-TTLM88E
|
Tr440x5
|
442
|
543
|
566
|
62
|
12
|
42500
|
54.0
|
|
SKF-TTLM90E
|
Tr450x5
|
452
|
554
|
580
|
64
|
12
|
44100
|
57.5
|
|
SKF-TTLM92E
|
Tr460x5
|
462
|
565
|
590
|
64
|
12
|
45100
|
60.0
|
|
SKF-TTLM94E
|
Tr470x5
|
472
|
576
|
602
|
65
|
12
|
46900
|
62.0
|
|
SKF-TTLM96E
|
Tr480x5
|
482
|
587
|
612
|
65
|
12
|
48600
|
63.0
|
|
SKF-TTLM98E
|
Tr490x5
|
492
|
597
|
624
|
66
|
12
|
49500
|
66.0
|
|
SKF-TTLM100E
|
Tr500x5
|
502
|
609
|
636
|
67
|
12
|
51500
|
70.0
|
以上型号的液压螺母螺纹规格均可根据用户要求设计、制作。 |
